HLF4K-D60-800 – Lightweight 4kW Victor Replacement DC/DC Converter | 50V/60V Adjustable

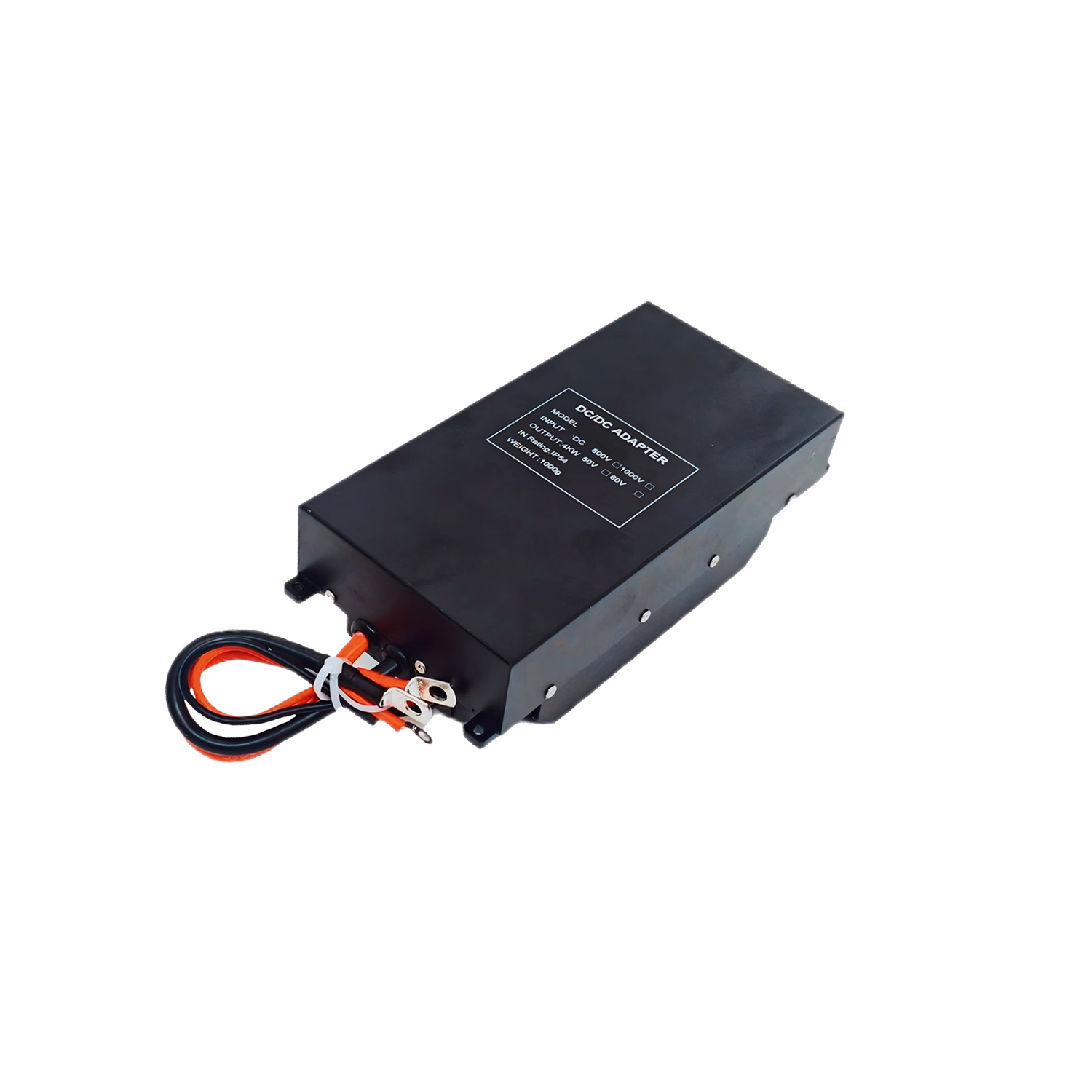

HLF4K-D60-800 – 4kW Lightweight Airborne DC/DC Converter
Drop‑in Replacement for Victor Power Supplies | 50V/60V Adjustable | Directly Powers 12S LiPo | ≥97% Efficiency
Overview
The HLF4K-D60-800 is a lightweight, high‑efficiency 4kW onboard DC/DC converter designed as a direct drop‑in replacement for Victor‑series power supplies. It offers superior power density, lower weight (just 1050g), and modern features at a competitive cost. Engineered for heavy‑duty tethered UAVs and 12S LiPo‑powered drones, it converts a 680–800 VDC input into an adjustable 50V–60V output, providing up to 80A at 50V or 66.7A at 60V (4kW continuous). With ≥97% efficiency and CAN 2.0 monitoring, it ensures reliable operation in harsh flight environments. If you are currently using Victor 4kW power modules, the HLF4K-D60-800 delivers equal or better performance with lighter weight, adjustable voltage, and enhanced thermal management.
Key Features – Why It Beats Victor
Lightweight Design – Weighs only 1050g – significantly less than equivalent Victor models, maximizing drone payload capacity.
Direct Victor Replacement – Same 680‑800V input, 50V/60V output, and CAN communication – no airframe modification required.
Adjustable Output (50V / 60V) – Set to 50V for 12S LiPo systems (nominal 50.4V) or 60V for higher‑voltage payloads. Victor units often lack this flexibility.
6kW Power Capability – 4kW continuous, up to 80A at 50V; delivers full rated power with ≥97% peak efficiency – lower heat than Victor.
Complete Protection Suite – Input UVP/OVP, output UVP/OVP/OCP/SCP, intelligent thermal derating, input fuse.
CAN 2.0 Communication – Real‑time monitoring and control; fully compatible with Victor’s CAN protocol.
Rugged Mechanical Design – Rubber damping pads, compact 187×95×70 mm footprint, forced air cooling recommended for sustained full load.
Wide Temperature Range – -20°C to +85°C operating, suitable for outdoor and airborne missions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HLF4K-D60-800 |
| Input Voltage | 680 – 800 VDC |
| Output Voltage | 50V – 60V adjustable (preset 60V; 50V available via CAN or request) |
| Output Current | Up to 80A @50V, up to 66.7A @60V (4kW max) |
| Output Power | 4000W (4kW continuous) |
| Efficiency | ≥97% (peak) |
| Communication | CAN 2.0B (Victor‑compatible) |
| Protections | Input UVP/OVP, Output UVP/OVP/OCP/SCP, Thermal derating, Input fuse |
| Cooling Method | Integrated heat sink (forced air recommended for continuous full power) |
| Vibration Resistance | Rubber damping mounting pads |
| Dimensions (L×W×H) | 187 × 95 × 70 mm |
| Weight | 1050 g (1.05 kg) – Victor alternative |
| Operating Temperature | -20°C ~ +55°C |
| Storage Temperature | -30°C ~ +80°C |
Note: At 50V output, maximum continuous current is 80A (4kW). At 60V, maximum current is 66.7A. Power remains 4kW.
Typical Applications
Heavy‑Lift & Tethered Drones – Persistent surveillance, inspection, communication relay – unlimited flight time.
12S‑Based UAVs – Direct Victor replacement for ground power units, no adapter needed.
Aerial Work Platforms – Powers LiDAR, cameras, searchlights, jammers, sensors.
Emergency & Public Safety – Nighttime illumination, broadcast relay, disaster assessment.
Why Choose HLF4K-D60-800 Over Victor?
| Feature | HLF4K-D60-800 | Typical Victor 4kW Unit |
|---|---|---|
| Weight | 1.05 kg (very light) | Typically 1.4–1.8 kg |
| Efficiency | ≥97% | Typically 94–95% |
| Output Voltage | Adjustable 50‑60V | Fixed 50V or 60V |
| Current @50V | 80A | Usually 70‑75A |
| Power Density | Higher (smaller footprint) | Larger |
| CAN Compatibility | Yes, Victor‑compatible | Yes |
| Price | Competitive | Higher |
The HLF4K-D60-800 is the modern, lightweight, cost‑effective alternative to Victor power supplies – same performance, better efficiency, less weight, and voltage adjustability.
Ordering Information
| Ordering Model | Description |
|---|---|
| HLF4K-D60-800 | 4kW lightweight airborne DC/DC converter, 680‑800V input, adjustable 50‑60V output, up to 80A @50V, CAN, 1.05kg, Victor‑compatible |
For a version fixed at 50V (12S optimized) or other custom voltages, contact sales. Ask about our Victor trade‑in program.
