HLF6K-D50-H800 – Lightweight 6kW Victor Replacement DC/DC Converter | 50V/120A for Tethered Drones

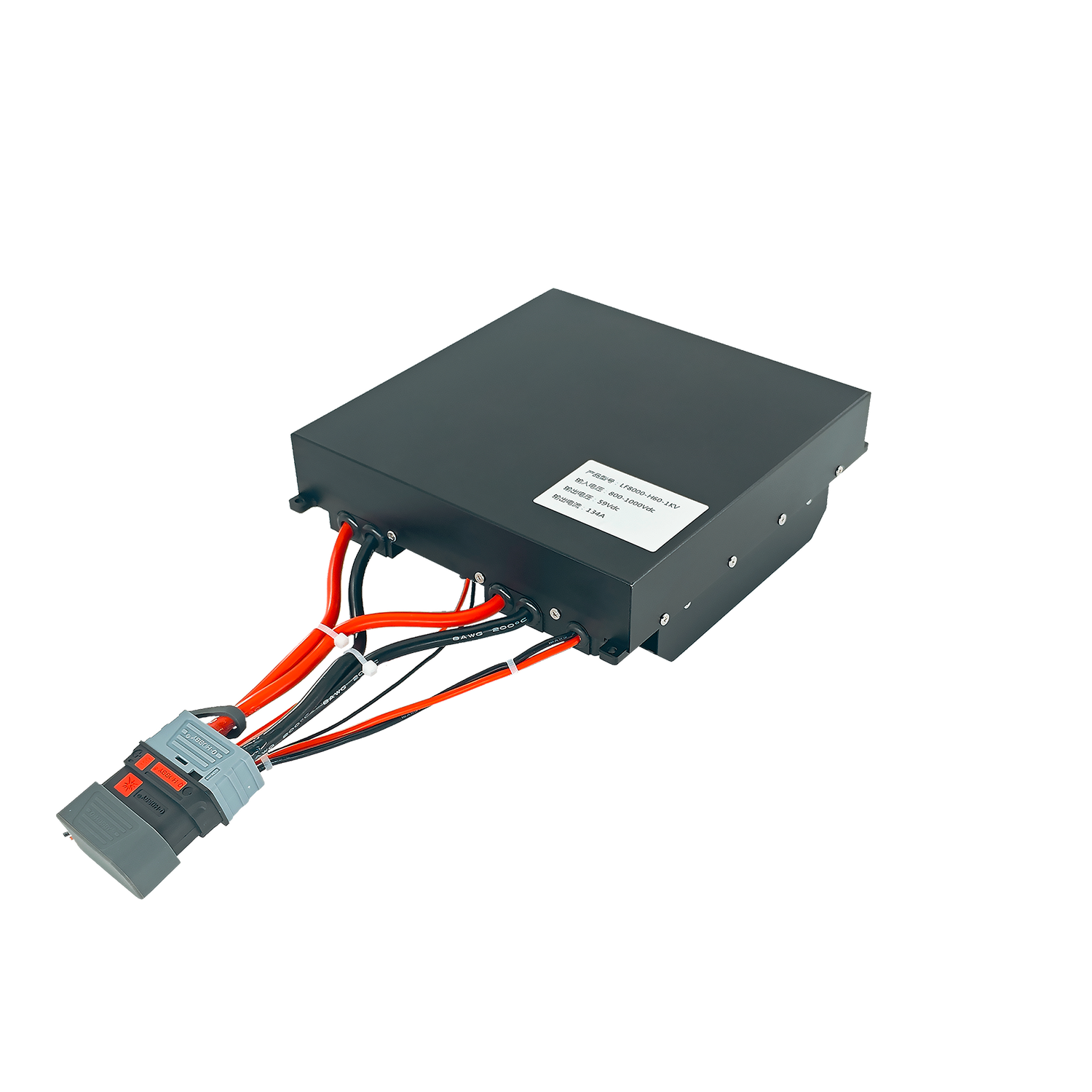

HLF6K-D50-H800 – 6kW Lightweight Airborne DC/DC Converter
Drop‑in Replacement for Victor Power Supplies | 680‑800V Input → 50V / 120A Output | Optimized for 12S LiPo & Tethered Drones
Overview
HLF6K-D50-H800 is a lightweight, high‑efficiency 6kW onboard DC/DC converter designed as a direct drop‑in replacement for Victor‑series power supplies. It offers superior power density, lower weight, and modern features at a competitive cost. Engineered for heavy‑duty tethered UAVs and 12S LiPo‑powered drones, it efficiently converts a 680–800 VDC input into a stable 50 VDC output at 120 A (6kW continuous). With ≥97% efficiency and a compact, rugged design, it significantly reduces cable losses over long tether runs while providing unlimited flight endurance. If you are currently using Victor power modules, the HLF6K-D50-800 delivers equal or better performance with lighter weight, smaller footprint, and enhanced CAN integration.
Key Features – Why It Beats Victor
Lightweight Design – Weighs significantly less than equivalent Victor models (exact weight: contact sales), maximizing drone payload capacity and flight agility.
Direct Victor Replacement – Same 50V output, 120A capability, CAN communication, and mounting compatibility – no airframe modification required.
High‑Voltage Input (680‑800V) – Enables efficient long‑distance power transmission, reducing tether cable weight and losses.
6kW Continuous Power – Delivers full 6kW with ≥97% peak efficiency, lower heat generation than Victor alternatives.
Stable 50V Output for 12S Systems – Perfect for 12S LiPo (50.4V nominal) – direct battery replacement for unlimited tether operation.
Complete Protection Suite
Input under‑voltage / over‑voltage protection
Output under‑voltage / over‑voltage / over‑current protection
Intelligent temperature protection with active power derating
Input fuse
CAN 2.0B Communication – Real‑time monitoring, diagnostics, and seamless integration into flight controllers (compatible with Victor’s CAN protocol).
Rugged & Compact – 171×101×89 mm footprint, forced air cooling recommended for sustained 6kW.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HLF6K-D50-H800 |
| Input Voltage | 680 – 800 VDC |
| Output Voltage | 50 VDC (adjustable upon request) |
| Output Current | Up to 120 A |
| Output Power | 6000 W (6kW continuous) |
| Efficiency | ≥97% (peak) |
| Communication | CAN 2.0B (Victor‑compatible) |
| Protections | Input UVP/OVP, Output UVP/OVP/OCP, Temperature derating, Fuse |
| Cooling Method | Heat sink with forced air cooling (required for full 6kW) |
| Vibration Resistance | Rubber damping pads |
| Dimensions (L×W×H) | 171 × 101 × 89 mm |
| Weight | Lightweight – contact sales for exact figure (significantly less than Victor 6kW) |
| Operating Temperature | -20°C ~ +55°C |
| Storage Temperature | -30°C ~ +80°C |
50V output directly replaces Victor’s 50V series – same voltage, higher efficiency, lower weight.
Applications
Tethered Drones – Unlimited flight time for surveillance, inspection, communication relay, and public safety.
12S LiPo UAVs – Direct Victor replacement for ground power units, no adapter needed.
Heavy‑Lift & Industrial Drones – Powers high‑current payloads (lights, pumps, sensors, actuators).
HALE Platforms – Long‑endurance missions requiring lightweight, efficient power conversion.
Why Choose HLF6K-D50-H800 Over Victor?
| Feature | HLF6K-D50-H800 | Typical Victor 6kW Unit |
|---|---|---|
| Weight | Much lighter | Heavier |
| Efficiency | ≥97% | Typically 94‑96% |
| Power Density | Higher (smaller footprint) | Larger |
| Input Voltage | 680‑800V | Often narrower range |
| Cooling | Forced air (compact) | Bulkier cooling |
| CAN Compatibility | Yes, Victor‑compatible | Yes |
| 12S Direct Output | 50V standard | 50V standard |
| Price | Competitive | Higher |
The HLF6K-D50-H800 is the modern, lightweight, cost‑effective alternative to Victor power supplies – same performance, better efficiency, less weight.
Ordering Information
| Ordering Model | Description |
|---|---|
| HLF6K-D50-H800 | 6kW lightweight airborne DC/DC converter, 680‑800V input, 50V / 120A output, CAN, Victor‑compatible, forced air cooling |
For samples, datasheets, or to discuss Victor replacement projects, contact us.
Contact & Support
📧 Email: info@levanepower.com
📞 Tel/WhatsApp: +86 18680670755
Ask about our Victor trade‑in program and bulk pricing.
